Fertilizer Screening Equipment
The vibrating screener operates through a vibration motor that drives the screen surface via springs and connecting rods, enabling continuous particle separation during operation. This structure allows materials to pass through the screen efficiently while maintaining stable vibration and smooth material flow. The design delivers high screening capacity, strong penetration performance, and low operating noise, making it suitable for continuous fertilizer production.
The vibrating screener is used in fertilizer production lines for particle size classification. By combining multiple screen layers with appropriate mesh sizes, it separates materials into defined size ranges. The screening configuration is adjusted according to material adhesion, moisture content, and hardness, while vibration parameters are tuned to improve screening efficiency, ensure uniform classification, reduce screen blockage, and lower energy consumption.
| Type | Installation Angle (° ) | Sieve Screen | Max. Feed Size (mm) | Production Capacity (t/h) | Vibration Frequency ('min) | Double Amplitude (mm) | Motor | Weight (kg) | |||||
| Layer | Area (m²) | Mesh Size (mm) | Structure | Model | Power | Installation Method | |||||||
| |
37 | 2 | 3.6 | ±4x50 1.4-4 | Stainless Steel Woven Mesh | W60 | 30-35 | 1450 | 3-5 | YZO-174 | 0.85 X2 | Seat | 2300 |
| |
37 | 2 | 5.4 | ±4x50 1.4-4 | Stainless Steel Woven Mesh | W60 | 55-60 | 1450 | 3-5 | YZO-17-4 | 0.85 X3 | Seat | 3290 |
| |
37 | 2 | 7.2 | ±4x50 1.4-4 | Stainless Steel Woven Mesh | W60 | 80-90 | 1450 | 3-5 | YZO-174 | 0.85 X4 | Seat | 4532 |
| |
37 | 2 | 9.6 | ±4x50 1.4-4 | Stainless Steel Woven Mesh | W60 | 110-120 | 1450 | 3-5 | YZO-174 | 0.85 X4 | Seat | 4888 |
| |
37 | 2 | 12.5 | ±4x50 1.4-4 | Stainless Steel Woven Mesh | W60 | 160-180 | 1450 | 3-5 | YZO-17-4 | 0.85 X4 | Seat | 8200 |

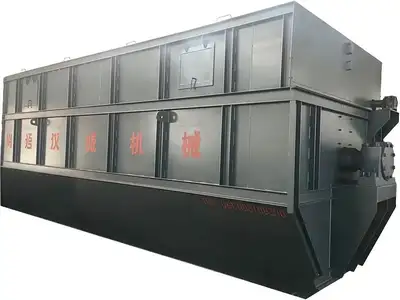

The rotary screener is mainly used for screening semi-finished and finished compound fertilizers. It effectively separates oversized particles and fine powder, allowing qualified finished products to be accurately classified. The screening equipment delivers stable screening performance and features a sealed structure for dust control, combined with a vibration device and an automatic cleaning mechanism to maintain continuous operation.
The rotary screener is used for grading and screening in fertilizer production lines. Through the combination of multiple screen layers and suitable mesh sizes, it achieves efficient separation of large particles and fine materials. A sealed dust-removal structure, together with vibration and automatic cleaning devices, helps improve screening efficiency while reducing blockage and dust generation.
| Specification m | Production Capacity t/h | Rev r/min | Motor kw | Level | (°) |
| Φ1×4 | 3~4 | 17 | 7.5 | 1 | 3-3.5 |
| Φ1.5×4~6 | 8~10 | 16 | 11 | 1 | 3-3.5 |
| Φ1.6×6 | 15~20 | 15 | 15 | 1 | 3-3.5 |
| Φ1.8×6 | 20~25 | 14 | 18.5 | 1 | 3-3.5 |
| Φ2×6 | 25~30 | 14 | 18.5 | 1 | 3-3.5 |
| Φ2.2×8 | 40 | 13 | 22 | 1 | 3-3.5 |
| Φ2.4×6 | 50 | 12 | 30 | 1 | 3-3.5 |
| Φ2.4×8 | 60 | 12 | 37 | 1 | 3-3.5 |
| Φ2.6×8 | 70-100 | 12 | 45 | 1 | 3-3.5 |
