Fertilizer Bucket Elevator

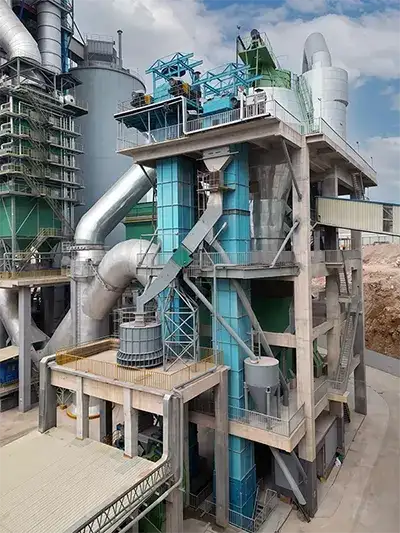

Chain Bucket Elevator
Chain Bucket Elevator

The chain bucket elevator is designed for vertical conveying of powdery, granular, and small lump materials with relatively high abrasiveness. Typical materials include compound fertilizer, grain, coal, cement, and crushed ore. With a maximum lifting height of up to 40 meters, it is well suited for continuous vertical transport in fertilizer production and related industrial processes.

This bucket elevator features a simple and reliable structure with smooth, stable operation. It adopts digging-type loading and centrifugal or mixed discharge, ensuring consistent material handling during operation. A forged endless chain is used as the traction component, providing strong load capacity and dependable service performance. The conveyed material temperature should not exceed 250 °C, making the equipment suitable for a wide range of fertilizer and bulk material applications.

Request a Quote
Main Technical Parameters
Model hoper type capacity
m³/h		 hopper chain speed
(m/s)		 driving speed
(r/min)		 material size
(mm)
Olume
L		 Length
(mm)		 Strength
(KN)
TH160 zh 19 1.2 350 Φ12×45 ≥170 1.2 62.5 20
sh 30 1.9 350 Φ12×45 ≥170 1.2 62.5 20
TH250 zh 30 3 450 Φ18×64 ≥320 1.2 46.8 25
sh 48 4.8 450 Φ18×64 ≥320 1.2 46.8 25
TH315 zh 35 3.75 512 Φ18×64 ≥320 1.4 42.5 35
sh 59 6 512 Φ18×64 ≥320 1.4 42.5 35
TH400 zh 58 5.9 512 Φ18×64 ≥320 1.4 37.6 40
sh 94 9.5 512 Φ18×64 ≥320 1.4 37.6 40
TH500 zh 73 9.3 688 Φ22×86 ≥480 1.5 35.8 50
sh 118 15 688 Φ22×86 ≥480 1.5 35.8 50
TH630 zh 114 14.6 688 Φ22×86 ≥480 1.5 31.8 60
sh 185 23.6 688 Φ22×86 ≥480 1.5 31.8 60
TH800 zh 150 24 920 Φ26×92 ≥570 1.6 30.5 75
sh 240 38 920 Φ26×92 ≥570 1.6 30.5 75
TH1000 zh 240 38 920 Φ26×92 ≥570 1.6 24.4 85
sh 360 60 920 Φ26×92 ≥570 1.6 24.4 85
TH1250 zh 360 60 1001 Φ28×92 ≥660 1.6 28 100
sh 540 95 1001 Φ28×92 ≥660 1.6 28 100
Steel-Cord Belt Bucket Elevator
Steel-Cord Belt Bucket Elevator

The steel-cord belt bucket elevator is designed for vertical conveying applications that require high capacity, long lifting height, and stable continuous operation. It is well suited for handling dry, free-flowing powdery, granular, and small lump materials commonly found in fertilizer production and related industries.

The elevator uses deep buckets to ensure efficient material pickup and discharge, supporting smooth and reliable conveying over long service periods. A steel wire rope–reinforced belt is adopted as the traction element, offering high tensile strength, strong flexibility, and extended operating life under continuous load conditions. The head, tail, and intermediate casings are fully enclosed to prevent material leakage and dust escape, helping maintain a clean working environment. The drive system is equipped with a vertical shaft reducer combined with pin coupling or hydraulic coupling, along with a backstop device. This configuration ensures stable transmission, protects key drive components, and prevents reverse movement when the system stops. At the lower section, a heavy hammer tensioning device is applied to automatically maintain proper belt tension, ensuring consistent operation and reducing manual adjustment requirements.

Request a Quote
Main Technical Parameters
Model capaci
M³/H		 hopper Kg/M M/S Hmax,M
L
MM
TDG160 sh 32 2.6 260 22 1.2 80
zh 24 1.9 260 22 1.2 80
TDG200 sh 45 4.1 300 21.5 1.2 80
zh 31 2.9 300 21.5 1.2 80
TDG250 sh 72 6.5 325 33 1.34 80
zh 51 4.6 325 33 1.34 80
TDG315 sh 101 10 360 33.2 1.34 80
zh 74 7.4 360 33.2 1.34 80
TDG400 sh 158 16 420 42.2 1.5 80
zh 118 12 420 42.2 1.5 80
TDG500 sh 220 25 460 62.3 1.5 80
zh 167 19 460 62.3 1.5 80
TDG630 sh 348 40 520 78.53 1.68 80
zh 253 29 520 78.53 1.68 80
TDG800 sh 492 64 580 106 1.65 80
zh 361 47 580 106 1.65 80
TDG100 sh 788 102 650 145 1.86 80
zh 571 74 650 145 1.86 80
TDG1250 sh 1.22 161 720 155.5 1.86 80
zh 816 117 720 155.5 1.86 80
TDG1600 sh 1541 255 820 223 1.836 80
zh 1112 184 820 223 1.836 80
